Name: HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP-BX-10km
Price: 893.00 USD
Availability: InStock

Evde > Ürünler > SFP + alıcı-verici modülü >

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS

Menşe yeri:

Guangdong, Çin

Marka adı:

HILINK

Sertifika:

CE FCC Rohs

Model numarası:

HL-SFP-BX-10km

Bizimle İletişim

Bir İndirim İste

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS

Ürün Ayrıntıları

veri hızı:

10g

Dalga boyu:

1270/1330 nm

Mesafe:

10KM

Bağlantı:

Garanti:

3 yıl

Sertifika:

RoHS Compliant

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Pazarlık edilebilir

Ambalaj bilgileri

Statik torba, Plastik Yassı, Perakende kutu, gereksinime göre

Ödeme koşulları

T / T, Western Union, MoneyGram, paypal

Yetenek temini

2000 adet/ay

İlişkili Ürünler

Video

10g-ZR4-80km 10g bidi 80km 1490nm/1550nm SFP+ STM-64 WDM 8SFP+ SMF

En İyi Fiyatı Alın

10G SFP+ Alıcı Modülü MMF 850nm 300M DDM Optik Alıcılar SFP-10G-SR

En İyi Fiyatı Alın

BIDI 10G WDM SMF Optik Alıcı SFP+ 100KM Tx1490nm/Rx1550nm FTTH Ağları için LC Fiber Optik Alıcıları ile

En İyi Fiyatı Alın

Uzun mesafe iletimi için 10G DWDM 100KM Optik Alıcı Modülü 100GHz C Bant Optik Modülü

En İyi Fiyatı Alın

Bizimle İletişim

86-755-8317-6243

Şimdi iletişime geçin

Ürün Tanımı

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS Compliant

Product Features

Supports 9.95 to 10.3Gb/s bit rates

Simplex LC Connector

Hot pluggable SFP+ footprint

Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector

Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector

Applicable for 10km SMF connection

Low power consumption, < 1W

Digital Diagnostic Monitor Interface

Optical interface compliant to IEEE 802.3ae 10GBASE-LR

Electrical interface compliant to SFF-8431

Operating case temperature:

Commerical:0 to 70 °C

Industrial:-40 to 80 °C

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other optical link

Product Descriptions

HL-SFP-BX-10KM series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The HL-SFP-BX-10KM module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.

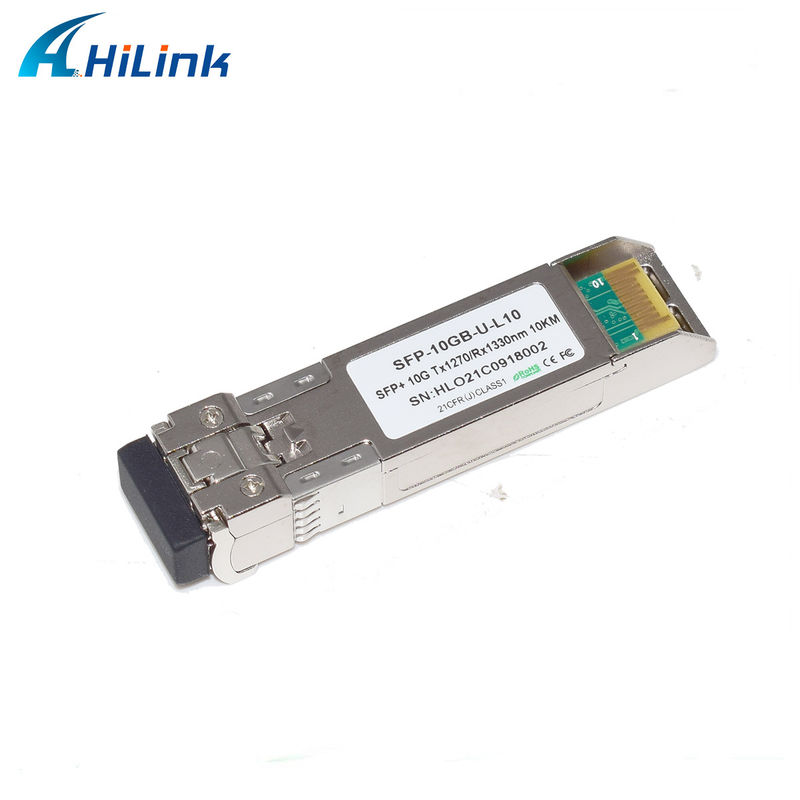

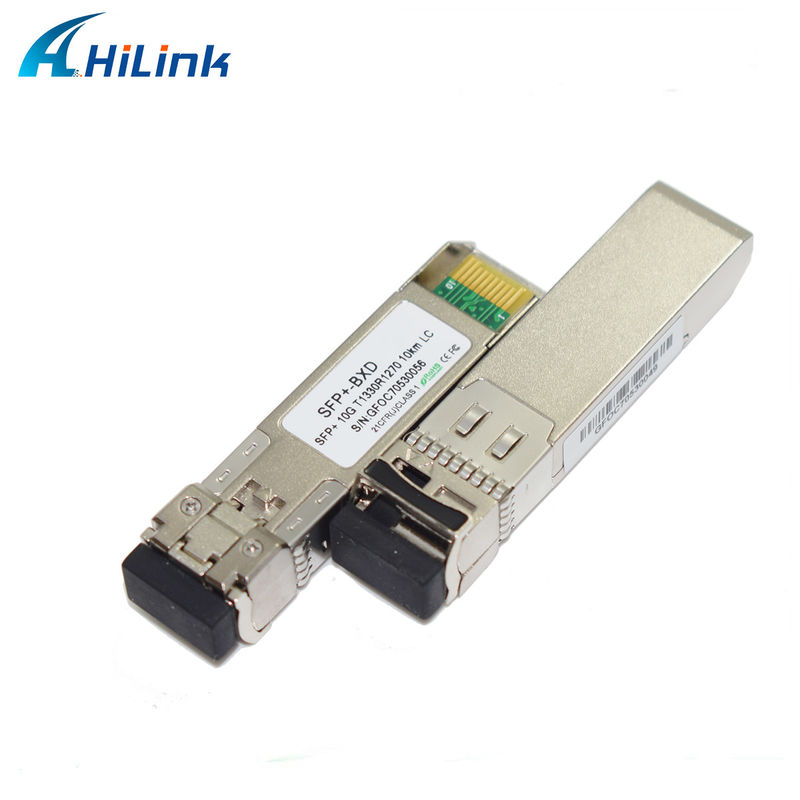

Real Photo

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS 0

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS 1

Our Service

OEM and ODM:

OEM/ODM order is available.

Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply:

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.

Company Information

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS 3

Packing & Shipping

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS 5
