General:
The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.
Features:
8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if required
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)
Applications
2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking
Realted product
| QSFP28-100G-SR4 |
100GBASE-SR4 850nm 100M LC |
| QSFP28-100G-LR4 |
100GBASE-LR4 1310nm 10KM LC |
| QSFP28-100G-ER4 |
100GBASE-ER 1310nm 40KM LC |
| QSFP28-100G-ZR4 |
100GBASE-ZR 1310nm 80KM LC |
| QSFP56-200G-SR8 |
200GBASE-SR 850nm 100M MPO |
| QSFP56-200G-FR4 |
200GBASE-FR4 1310nm 2KM LC |

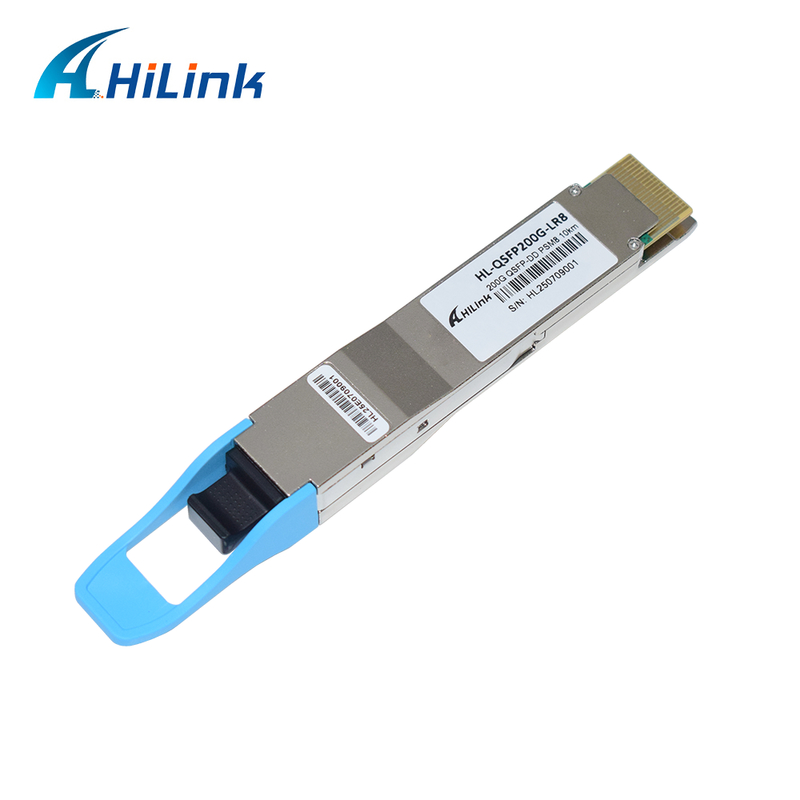

Product Picture show:
Mechanical Drawings
