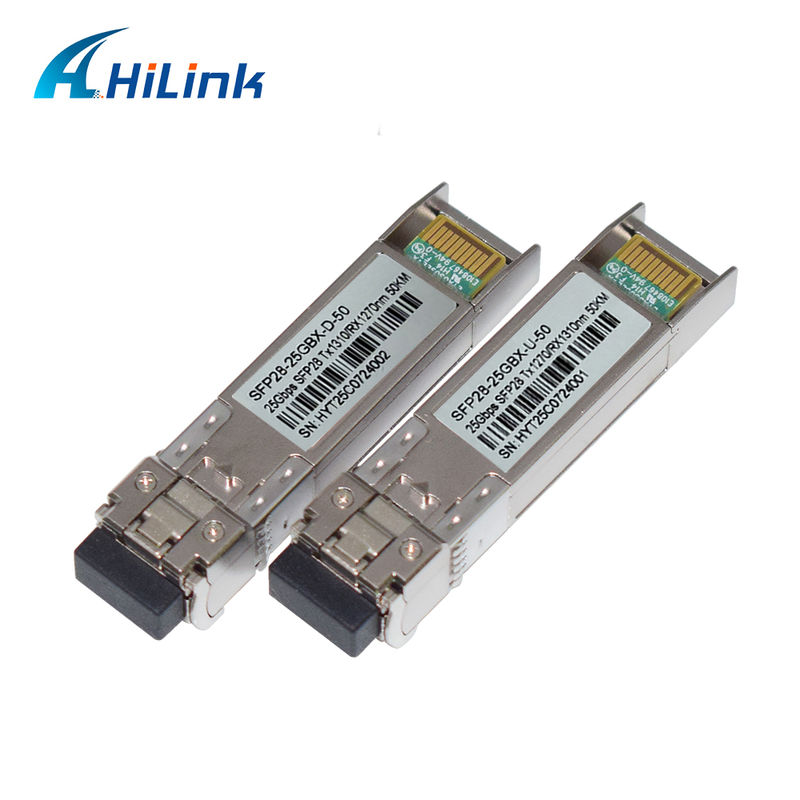

Name: 25G SFP28 BIDI 50km 1270/1310nm Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: 25G-BXU/D-50
Price: 130.00 USD
Availability: InStock

Evde > Ürünler > optik alıcı modülü >

25G SFP28 BIDI 50km 1270/1310nm Module

25G SFP28 BIDI optical transceiver

50km SFP28 fiber module

1270/1310nm BIDI transceiver module

Menşe yeri:

Guangdong, Çin

Marka adı:

Hilink

Sertifika:

CE Rohs

Model numarası:

25G-BXU/D-50

Bizimle İletişim

Bir İndirim İste

Ürün Ayrıntıları

Ürün adı:

25G-BXU/D-50

veri oranı:

25g

Ulaşmak:

50 km.

Çalışma sıcaklığı:

0 ila 70 ℃

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 parça

Fiyat

Send Inquiry know latest price

Ambalaj bilgileri

Plastik kutu+karton

Teslim süresi

5-8 İş Günü

Ödeme koşulları

T/T, Western Union, Alipay, PayPal/Wechat/Ticaret Güvencesi

Yetenek temini

Haftada 2000 Parça

İlişkili Ürünler

25Gb/s SFP28 BIDI 60km DDM Alıcı-Verici

En İyi Fiyatı Alın

100G QSFP28 SWDM4 Optik Alıcı-Verici 150m OM5 MMF LC RoHS

En İyi Fiyatı Alın

155Mb/s BiDi Tek SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, 40km SFP Alıcı-Verici

En İyi Fiyatı Alın

Video

800G OSFP112 DR8+ Alıcı Çift MPO-12 APC Arayüz 1310nm 2km OSFP

En İyi Fiyatı Alın

Bizimle İletişim

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Şimdi iletişime geçin

Ürün Tanımı

25G SFP28 BIDI 50km 1270/1310nm Module

Product Specifications

Attribute	Value
Product Name	25G-BXU/D-50
Data Rate	25G
Reach	50KM
Operating Temperature	0 to 70℃

Key Features

Supports data rates up to 25.78125Gb/s
Hot-pluggable SFP footprint with single LC connector
Up to 50km reach for G.652 SMF
EML transmitter and integrated APD receiver
Temperature range: Commercial (0°C to 70°C)
Power consumption: Commercial (1.5W)
RoHS 6 compliant
Compliant with IEEE 802.3cc, SFP-8472, SFP-8432 and SFP-8431
Meets EU Directive 2015/863/EU requirements

Applications

25G Ethernet networks

Product Description

This 25G series single mode transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 50km transmission distance with SMF. This module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1310nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The SFP28 50km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

Product Images

Our Service

OEM/ODM orders available - All optical modules are brand new with no refurbished components. Each unit undergoes rigorous functional and aging tests.

3-year warranty - Coverage begins from shipment date for all optical transceivers.
