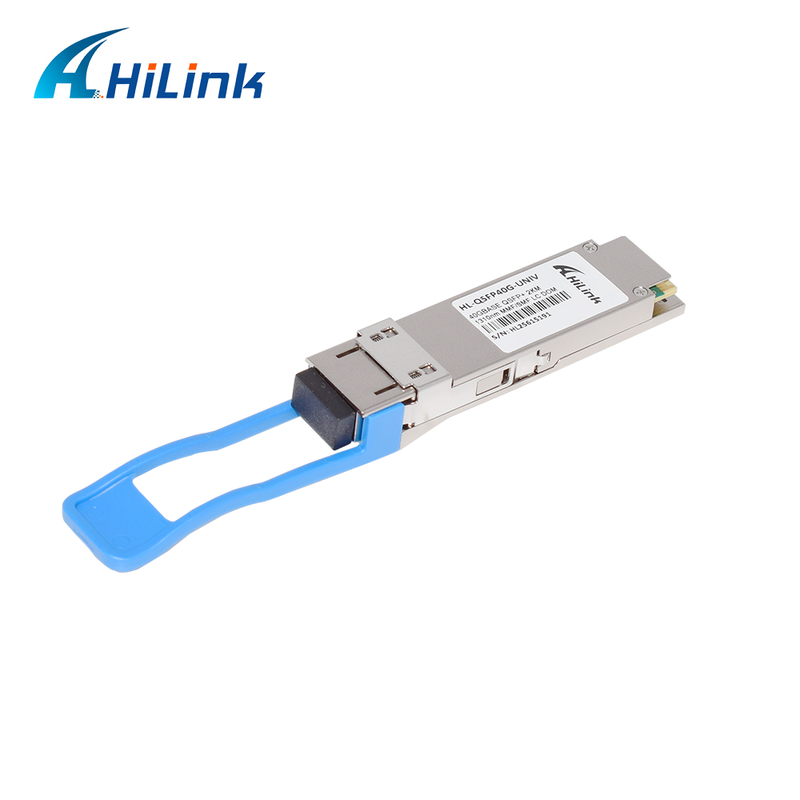

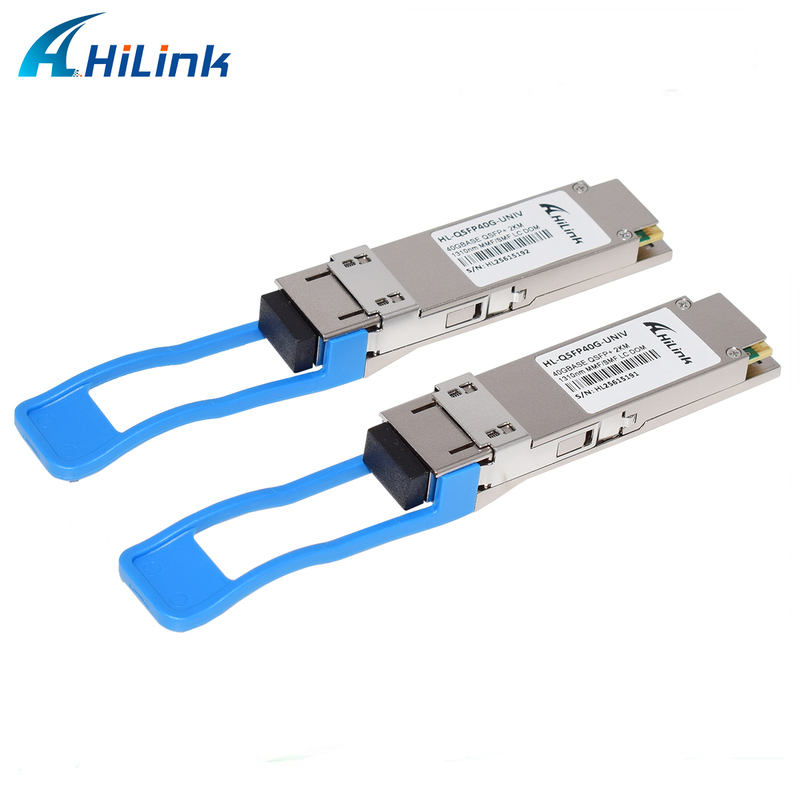

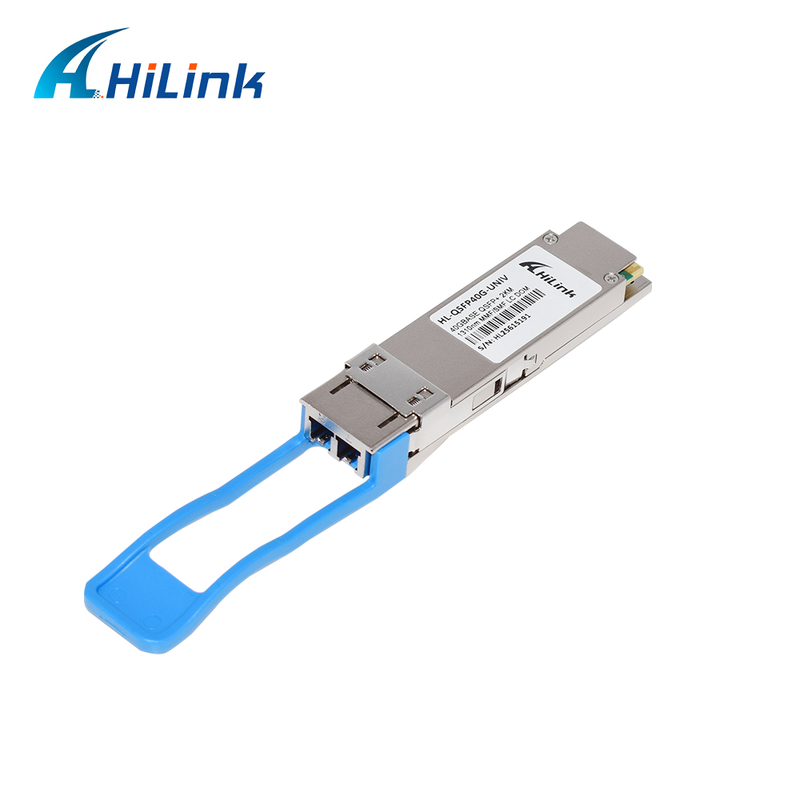

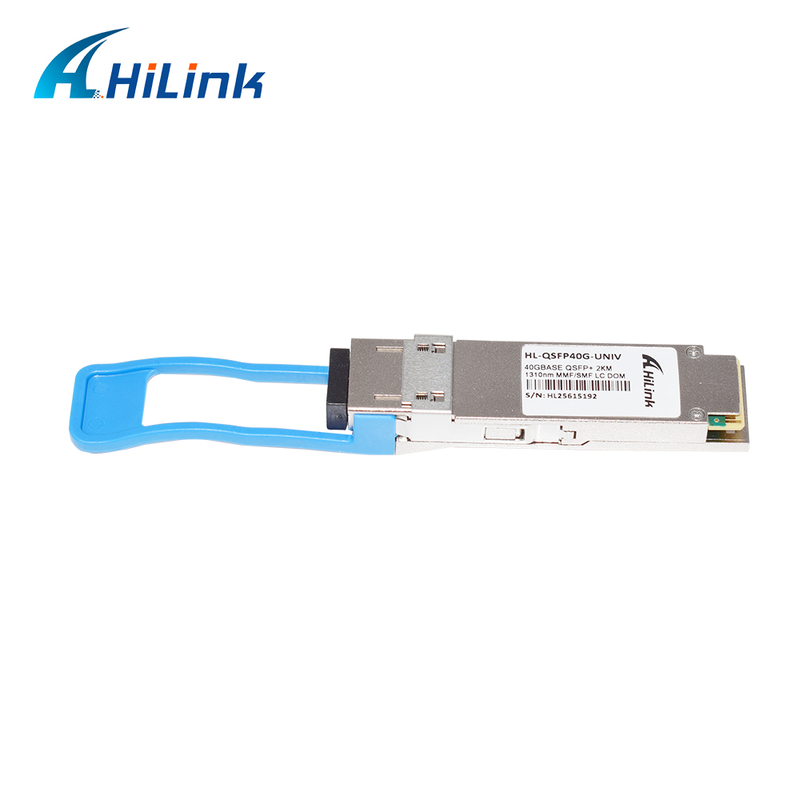

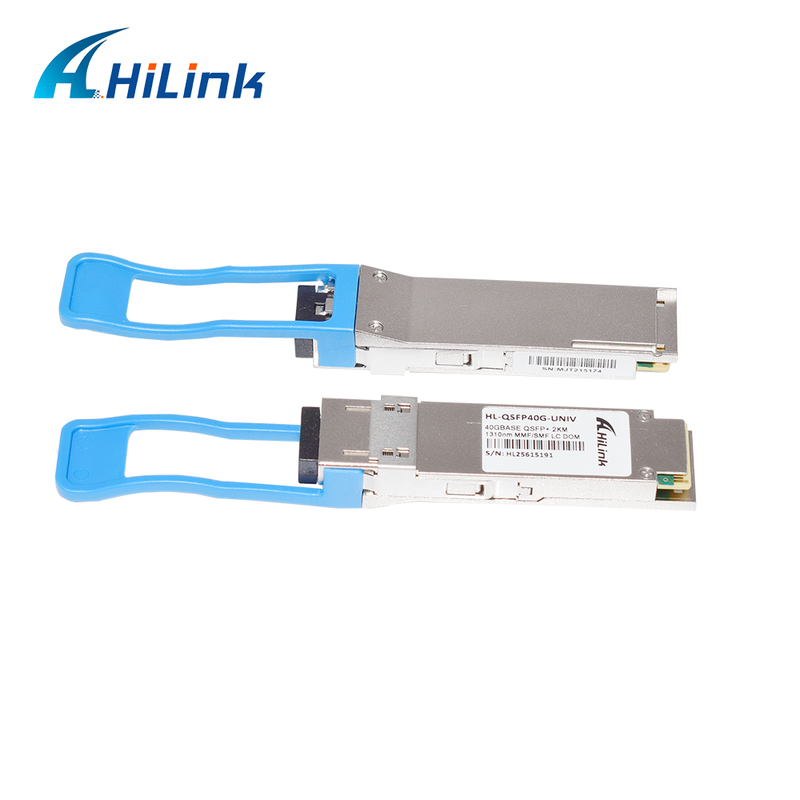

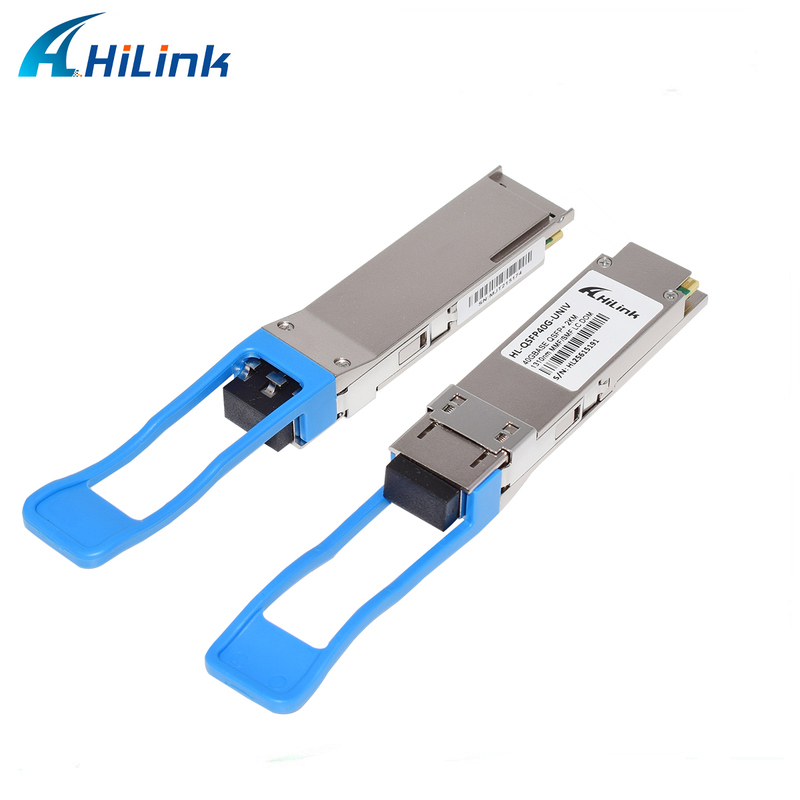

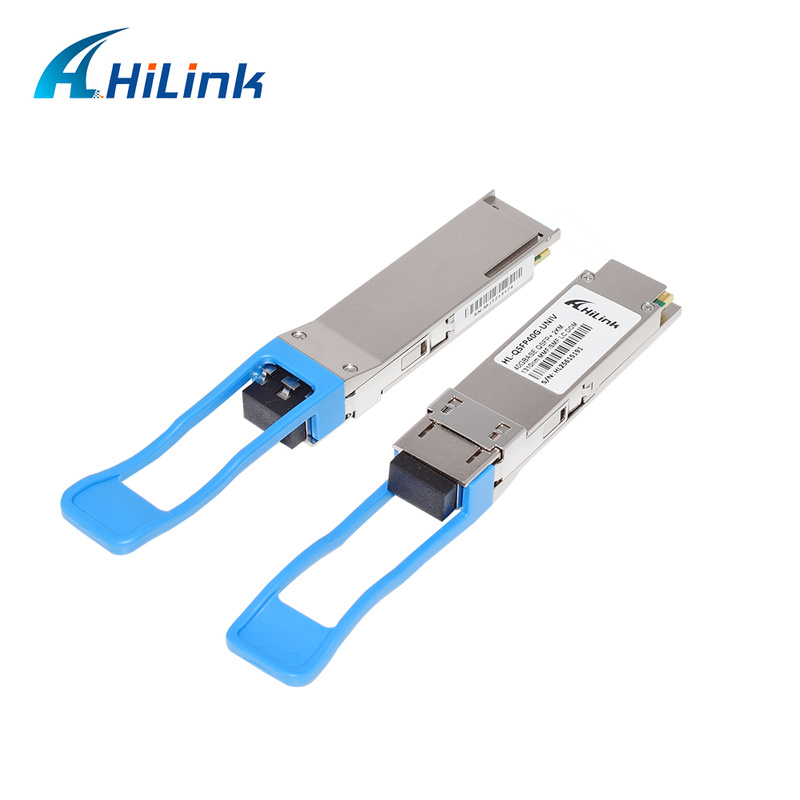

Name: 40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-LX4
Price: 81.00 USD
Availability: InStock

Evde > Ürünler > QSFP + alıcı-verici >

40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

1270~1330nm QSFP+ Transceiver

4 CWDM Lanes MUX/DEMUX Optical Module

2km Fiber Optic Transceiver

Menşe yeri:

Guangdong, Çin

Marka adı:

HILINK

Sertifika:

CE FCC Rohs

Model numarası:

HL-QSFP-40G-LX4

Bizimle İletişim

Bir İndirim İste

40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

Ürün Ayrıntıları

Ürünler Adı:

40G QSFP+ 2Km

Bağlayıcı:

Dubleks LC

Veri oranı:

40g

Mesafe:

2km

Sıcaklık aralığı:

0°C ~ +70°C

Sertifika:

RoHS Compliant

Tip:

Fiber optik alıcı -vericiler, 40G QSFP+

Dijital teşhis işlevleri:

Yerleşik

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

EXW: 75~87USD/PCS

Ambalaj bilgileri

Statik torba, Plastik Yassı, Perakende kutu, gereksinime göre

Teslim süresi

5-8 iş günü

Ödeme koşulları

Western Union, T/T, L/C

Yetenek temini

100 adet/ay

İlişkili Ürünler

40G QSFP+ SWDM4 Optical Transceiver with 240m/350m Distance Duplex LC Connector and Built-in Digital Diagnostics

En İyi Fiyatı Alın

40Gb/s 150m QSFP+ SR4 Transceiver Fiber Optic Module MPO Connector

En İyi Fiyatı Alın

40Gb/s 100m QSFP+ Fiber Optic Module Bi-Di Duplex LC Hot Pluggable 850/900nm MMF

En İyi Fiyatı Alın

40Gb/s 60km QSFP+ Alıcı Sıcak Takılabilir Dupleks LC Bağlantısı Tek mod

En İyi Fiyatı Alın

Bizimle İletişim

86-755-8317-6243

Şimdi iletişime geçin

Ürün Tanımı

40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

Product Description

40Gb/s LX4 IR4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

Key Features

Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-SR4/IR4 Standard
QSFP MSA compliant
Maximum link length of 100m on OM3 and 150m on OM4
4 CWDM lanes MUX/DEMUX design
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Operating temperature range: 0°C to 70°C
RoHS Compliant

Applications

Rack to rack connections
Data center switches and routers
Metro networks
40G Ethernet links

Technical Details

The HL-QSFP-40G-LX4 transceiver module is designed for 2km (SMF) and 150m (MMF) optical communication applications. Compliant with 40GBASE-SR4 and 40GBASE-LX4 of the IEEE P802.3ba standard, it converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Our Services

We offer OEM and ODM services for custom orders.

Quality Guarantee

All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes functional and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS with delivery in 3-7 days.
