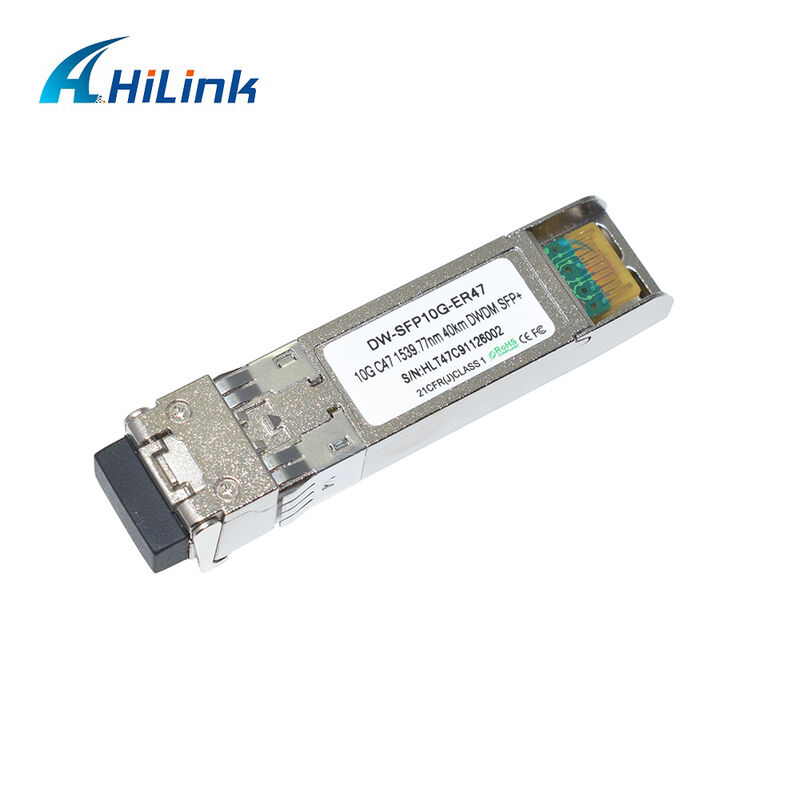

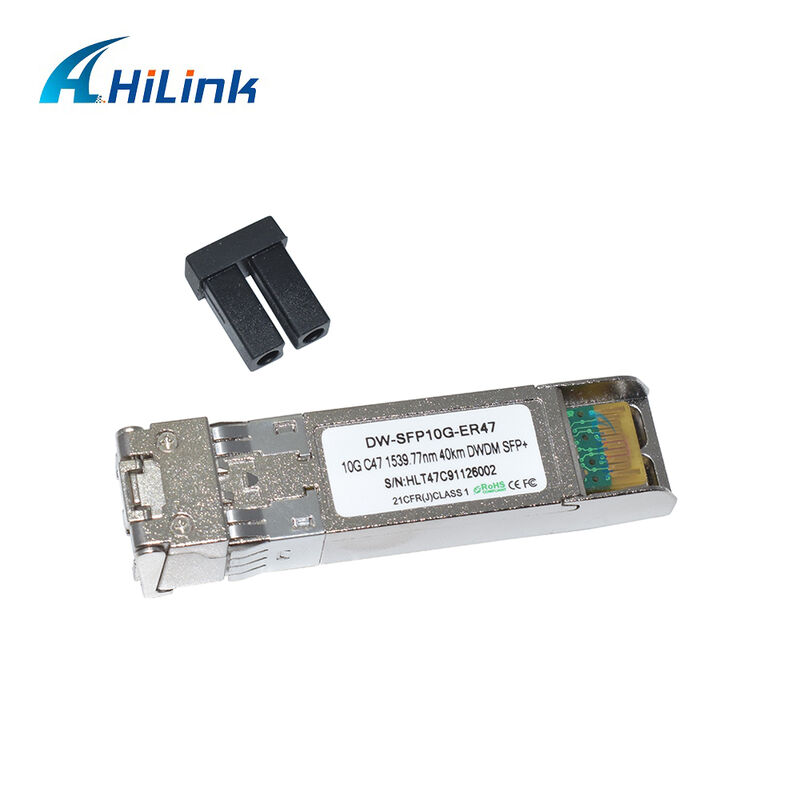

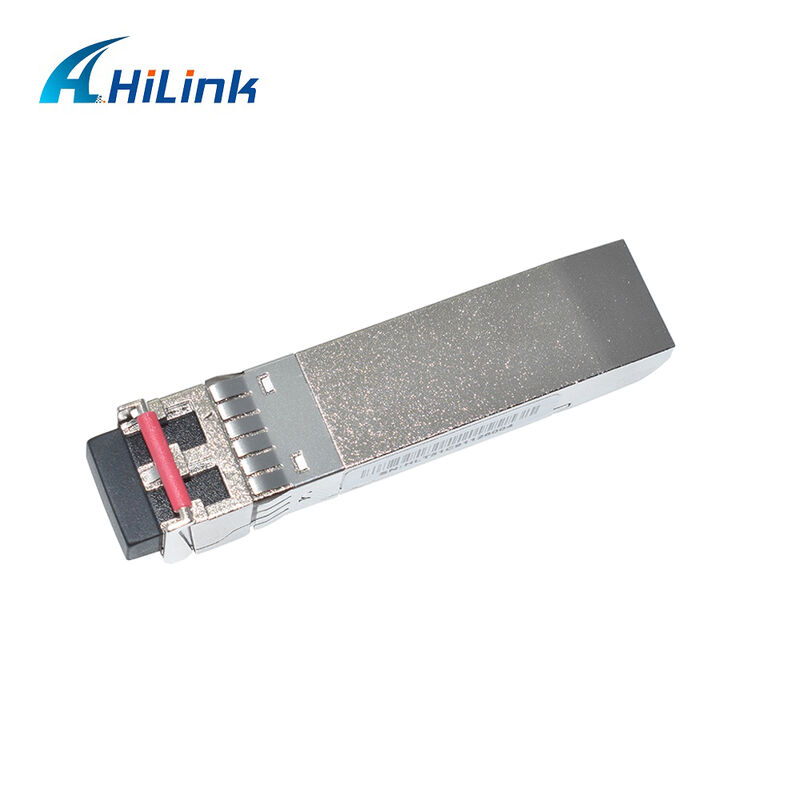

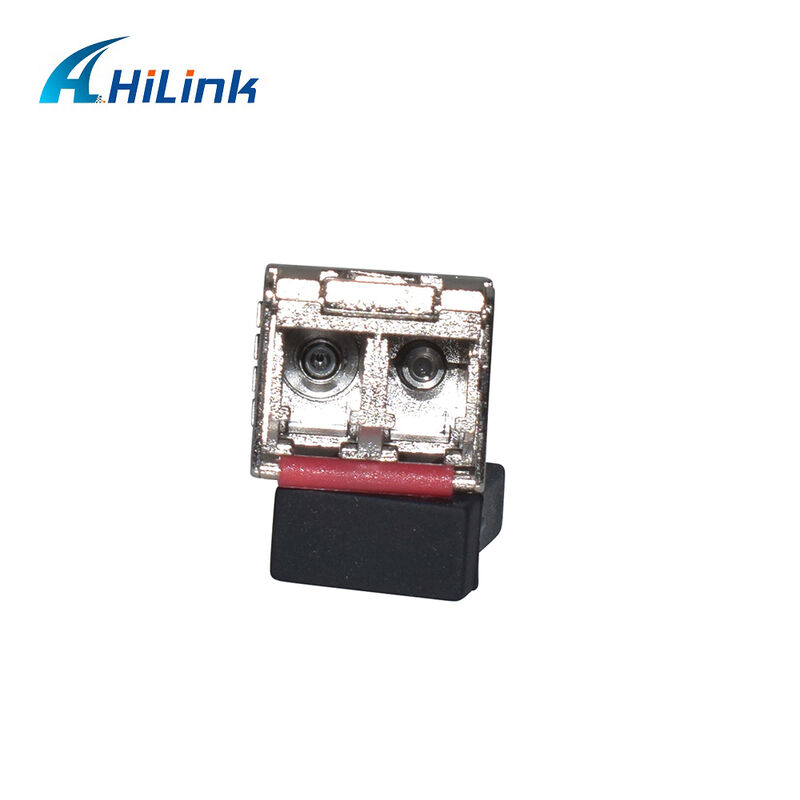

Name: 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DWSFP10G-ER
Price: 130.00 USD
Availability: InStock

Evde > Ürünler > optik alıcı modülü >

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

40km Distance Optical Transceiver Module

100GHz Channel Spacing SFP+ Transceiver

CH17~61 Wavelength 10G DWDM SFP+

Menşe yeri:

Guangdong, Çin

Marka adı:

Hilink

Sertifika:

CE RoHs

Model numarası:

HL-DWSFP10G-ER

Bizimle İletişim

Bir İndirim İste

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Ürün Ayrıntıları

Ürün adı:

10G DWDM SFP+ 40KM

Veri Hızı:

10 gr

Dalgaboyu:

CH17~61

Mesafe:

40km

Garanti:

3 yıl

Sertifika:

RoHS

Teslimat süresi:

3-7 iş günü

Oem:

Destek

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Pazarlık edilebilir

Ambalaj bilgileri

Normal Paket Veya OEM

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,T/T,Western Union

İlişkili Ürünler

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

En İyi Fiyatı Alın

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

En İyi Fiyatı Alın

Hilink Özelleştirilmiş MTP/MPO Kablo Demetleri

En İyi Fiyatı Alın

Hilink Özelleştirilmiş MTP/MPO Patchcord Kabloları

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

10G SFP+ DWDM Optical Transceiver Module

HILINK's 10G DWDM SFP+ 40KM Enhanced Small Form Factor Pluggable transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. These high-performance, cost-effective solutions are optimized for telecommunications applications and comply with SFF-8431, SFF-8432 and ITU-T G.698.1 standards.

Product Overview

This transceiver features a cooled EML laser in the transmitter section and a PIN photodiode integrated with TIA in the receiver section. All modules satisfy Class I laser safety requirements and include digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472, providing real-time access to operating parameters.

Key Features

Supports 9.95 to 11.3 Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled EML transmitter and PIN-TIA receiver
40km Single Mode Fiber connection capability
Low power consumption < 1.2W
100 GHz channel spacing
Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1 & G.698.1
Electrical interface compliant to SFF-8431 & SFF-8432
Operating case temperature options:
- Commercial: 0°C to 70°C
- Industrial: -5°C to 80°C

Applications

10G Ethernet
2x, 4x, 8x Fiber Channel
ITU-T G.698.1 compliant systems
Other optical link applications

Channel Selection Specifications

Channel	Frequency (THz)	Center Wavelength (nm)
17	191.7	1563.86
18	191.8	1563.05
19	191.9	1562.23
20	192.0	1561.42
21	192.1	1560.61
22	192.2	1559.79
23	192.3	1558.98
24	192.4	1558.17
25	192.5	1557.36
26	192.6	1556.55
27	192.7	1555.75
28	192.8	1554.94
29	192.9	1554.13
30	193.0	1553.33
31	193.1	1552.52
32	193.2	1551.72
33	193.3	1550.92
34	193.4	1550.12
35	193.5	1549.32
36	193.6	1548.51
37	193.7	1547.72
38	193.8	1546.92
39	193.9	1546.12
40	194.0	1545.32
41	194.1	1544.53
42	194.2	1543.73
43	194.3	1542.94
44	194.4	1542.14
45	194.5	1541.35
46	194.6	1540.56
47	194.7	1539.77
48	194.8	1538.98
49	194.9	1538.19
50	195.0	1537.40
51	195.1	1536.61
52	195.2	1535.82
53	195.3	1535.04
54	195.4	1534.25
55	195.5	1533.47
56	195.6	1532.68
57	195.7	1531.90
58	195.8	1531.12
59	195.9	1530.33
60	196.0	1529.55
61	196.1	1528.77

Available in channels 17 through 61 with 100 GHz spacing for flexible network deployment.
