Name: 400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-400G - OSFP-LR
Price: 900.00 USD
Availability: InStock

Evde > Ürünler > QSFP + alıcı-verici >

400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module

400G OSFP LR4 transceiver

OSFP module single mode fiber

10km duplex LC OSFP

Menşe yeri:

Guangdong, Çin

Marka adı:

HILINK

Sertifika:

CE FCC Rohs

Model numarası:

HL-400G - OSFP-LR

Bizimle İletişim

Bir İndirim İste

Ürün Ayrıntıları

Ürün adı:

400G - OSFP-LR

Başvuru:

400G tabanı

Dalgaboyu:

1310nm

Mesafe:

10km

Bağlayıcı:

DDM/DOM:

Evet

Elyaf Tipi:

SMF

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Pazarlık edilebilir

Ambalaj bilgileri

Statik çanta, plastik torba, perakende kutusu

Teslim süresi

2-7 İş Günü

Ödeme koşulları

Banka havalesi, Western Union, Paypal

Yetenek temini

10 adet/hafta

İlişkili Ürünler

Video

400G Base SMF LR4 OSFP Module Duplex LC Transmission on 10km for 5G Data Center

En İyi Fiyatı Alın

Video

QSFP+ Alıcı-Verici VCSEL OM4 MMF QSFP+ Alıcı-Verici 850nm 100m Dubleks LC 100G Fcc

En İyi Fiyatı Alın

Video

Veri Merkezi için 100G QSFP28 SWDM4 Fiber Optik Alıcı-Verici MMF 150m Dubleks LC

En İyi Fiyatı Alın

Video

Dubleks LC SMF Optik Alıcı Modülü 100GBASE-LR1 QSFP28 Tek Lambda 1310nm 10km DOM

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module

Product Overview

400G Base SMF LR4 OSFP Module Duplex LC Transmission on 10km for 5G Data Center

Kindly Remind: Tell us your needed compatibility!

OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s.

The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with a 4-channels modulator driver, 4 externally modulated lasers and one optical multiplexer. On the receiver path, an optical de-multiplexer is coupled to 4 photodiodes, along with the PAM4 re-timer that built-in 4-channel TIA array. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC supported at the Host side
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface PIN and TIA array on the receiver side
Power dissipation < 8W

QSFP Series Comparison

QSFP	Nominal Wavelength (nm)	Cable Type	Core Size (Microns)	Modal Bandwidth (MHzkm)3	Cable Distance*1	Power Consumption (W)	Pull Tab Color
QSFP-100G-SR4-S	850	MMF	50.0 50.0	2000 (OM3) 4700 (OM4)	70m 100m	3.5	Beige
QSFP-100G-LR4-S	1295, 1300, 1304, 1309	SMF	G.652	-	10km	3.5	Blue
QSFP-100G-CWDM4-S	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green
QSFP-100G-PSM4-S	1310	SMF	G.652	-	500m	3.5	Orange
QSFP-100G-SM-SR	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green

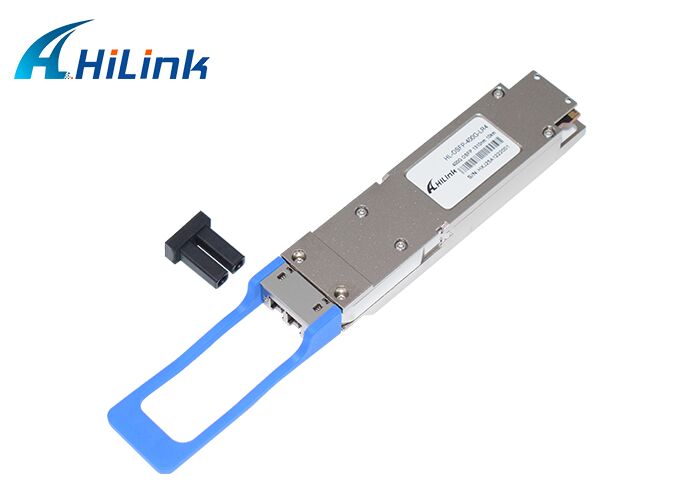

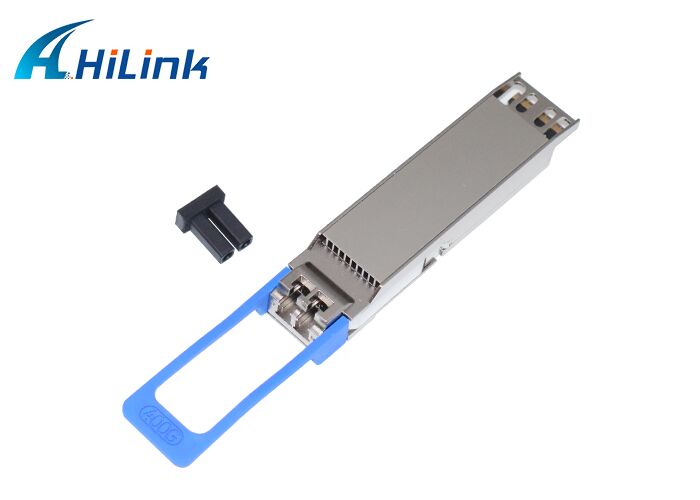

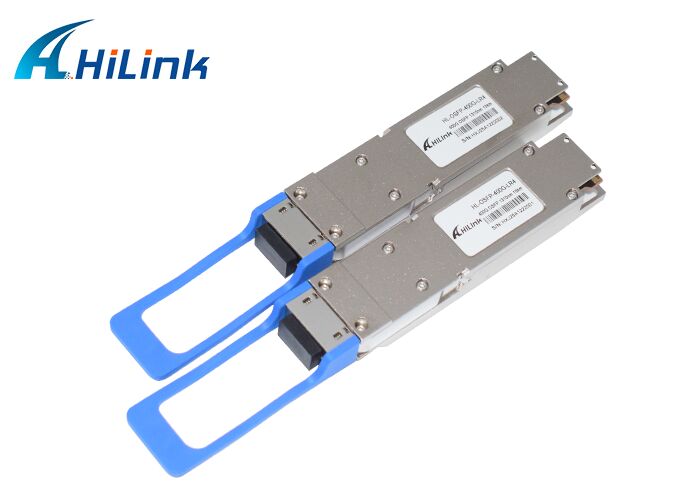

Product Image
