Name: 200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

Evde > Ürünler > optik alıcı modülü >

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Menşe yeri:

Çin

Marka adı:

HiLink or OEM

Sertifika:

CE FCC ROSH

Model numarası:

HL-QSFP200G-LR8

Bizimle İletişim

Bir İndirim İste

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Ürün Ayrıntıları

Ürün adı:

200G QSFP DD PSM8 10km Optik Alıcı-Verici(MPO16)

Bulaşma:

10km

Veri hızı:

200g

Bağlayıcı:

MPO16

Dalga boyları:

1310nm

OEM:

Destek

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Pazarlık edilebilir

Ambalaj bilgileri

Normal Ambalaj veya OEM

Teslim süresi

5-8 iş günü

Ödeme koşulları

Banka havalesi, Western Union, Paypal

Yetenek temini

haftada 2000 adet

İlişkili Ürünler

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

En İyi Fiyatı Alın

10Gb/s XFP İki Yönlü Alıcı 40km Erişim TX1270/1330nm RX1330/1270nm RoHS Uyumlu

En İyi Fiyatı Alın

Hilink 10G Veri Hızı SFP+ Alıcı-Verici, 30M/80M Mesafe ve RoHS Uyumlu 10GBASE-T Bakır Modül

En İyi Fiyatı Alın

Hilink HL-SFP-T 1000BASE-T ve 10/100/1000BASE-T RJ-45 Bağlantısı ile Bakır SFP Alıcı

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

Description

The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service. The 200G QSFP DD PSM8 is one kind of parallel transceiver. DFB and PIN array package is key technique, through I2C system can contact with module.

Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if requires
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

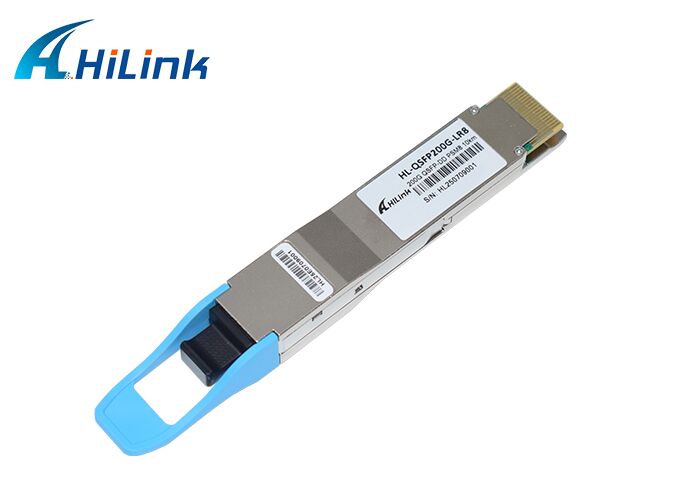

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 0

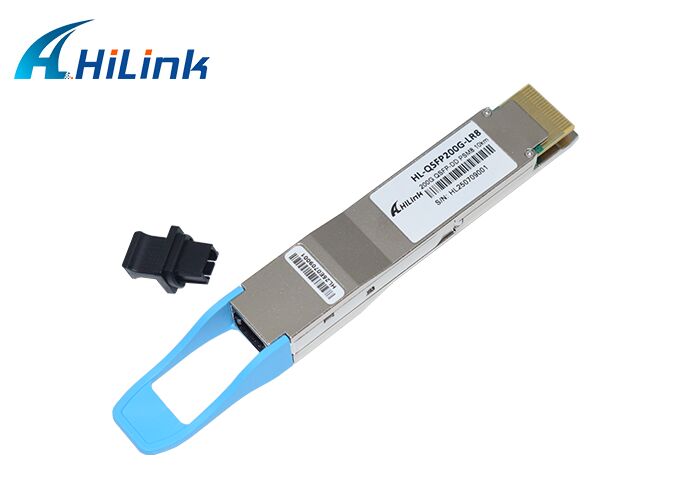

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 1

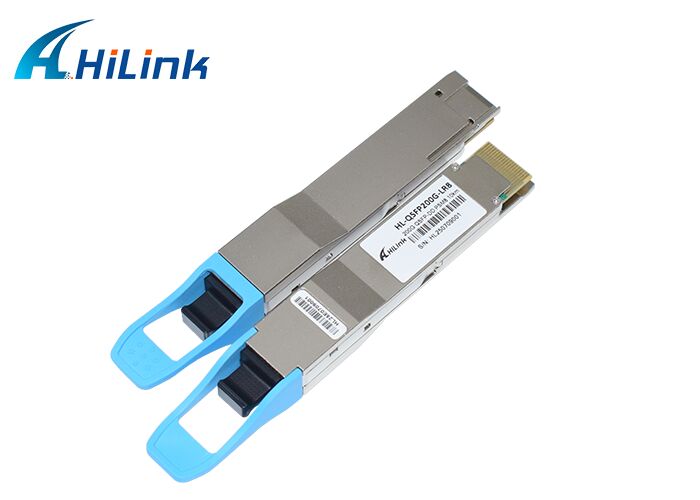

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 2
