Name: QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 125.00 USD
Availability: InStock

Evde > Ürünler > optik alıcı modülü >

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

QSFP56 200G SR4 transceiver

200G BASE-SR4 optical module

850nm multi-mode QSFP56 transceiver

Menşe yeri:

Guangdong, Çin

Marka adı:

HILINK

Sertifika:

CE FCC Rohs

Model numarası:

HL-QSFP56-200G-SR4

Bizimle İletişim

Bir İndirim İste

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

Ürün Ayrıntıları

Veri Hızı:

200GB/S

Mesafe:

100 m

Dalgaboyu:

850nm

Bağlayıcı:

MPO-12 Konektörü

Garanti:

3 yıl

paket:

QSFP56

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

$100-150

Ambalaj bilgileri

Statik torba, Plastik Düz, Perakende kutu, ihtiyaca göre

Ödeme koşulları

L/C, T/T, Western Union.Paypal

Yetenek temini

100/ADET/AY

İlişkili Ürünler

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

En İyi Fiyatı Alın

Video

60km İletim ve DDM Desteği ile 25Gb/s SFP28 BIDI Optik Alıcı-Verici

En İyi Fiyatı Alın

25G SFP28 BIDI 10km/20km/40km/50km/60km Optik Modülü

En İyi Fiyatı Alın

OSFP Transceiver 400G Veri Hızı 10km İletişim 1310nm Dalga Uzunluğu 400G Ethernet ve Veri Merkezleri için

En İyi Fiyatı Alın

Bizimle İletişim

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Şimdi iletişime geçin

Ürün Tanımı

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

The QSFP56-200G-SR4 is a high-performance, 4-channel pluggable fiber-optic transceiver designed for 200Gbps short-range applications. Operating at 53.125Gbps per lane using PAM4 modulation, this module supports distances up to 70m on OM3 multimode fiber and 100m on OM4 multimode fiber.

Product Overview

This QSFP56 transceiver features an MPO optical interface and 38-contact electrical edge connector, operating at a nominal wavelength of 850nm. It is engineered for reliable performance in data center and high-speed networking environments.

Key Features

Hot-pluggable QSFP56 form factor
Data rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and receiver
4-channel 850nm VCSEL laser array and PIN photo-detector array
Maximum link length: 70m on OM3 MMF, 100m on OM4 MMF
Digital diagnostics via I2C interface
Single 3.3V power supply
Power dissipation: QSFP56-200G-SR4C < 5.5W, QSFP56-200G-SR4B < 6W
MPO-12 connector
Operating case temperature: 0℃ to +70℃
RoHS compliant

Applications

200GBASE-SR4 Ethernet links
Data center interconnects

Ordering Information

Part Number	Product Description
QSFP56-200G-SR4C	200G QSFP56 SR4 CDR MPO-12 PC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4B	200G QSFP56 SR4 DSP MPO-12 PC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4C1	200G QSFP56 SR4 CDR MPO-12 APC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4B1	200G QSFP56 SR4 DSP MPO-12 APC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC

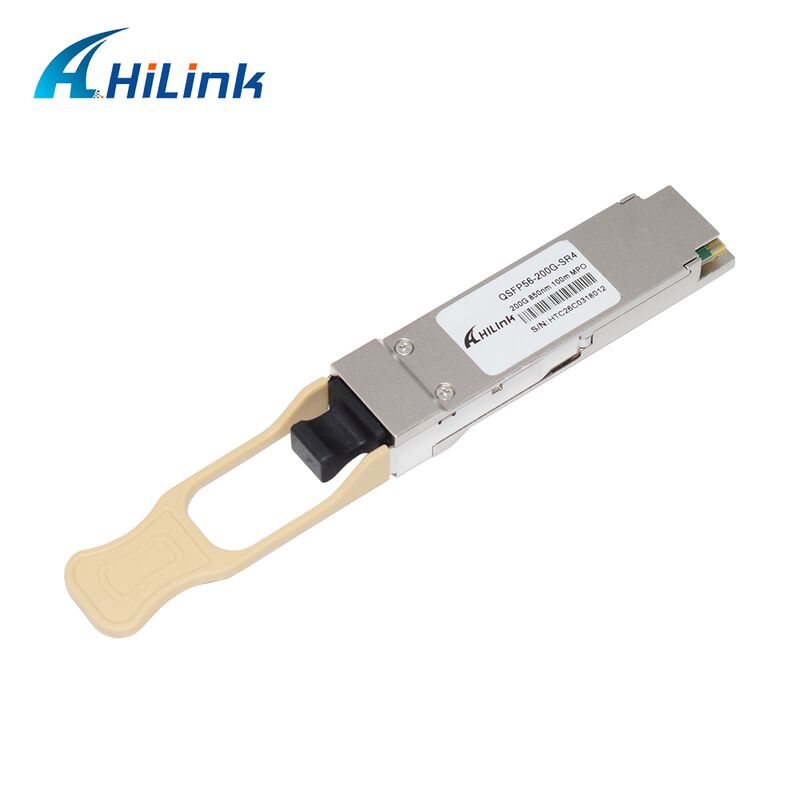

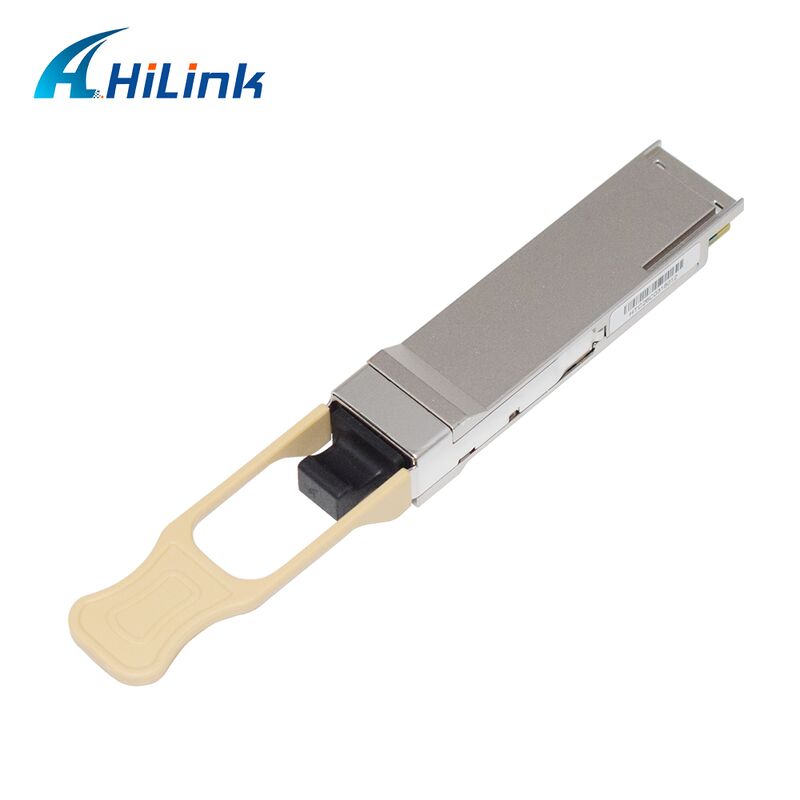

Product Images

Mechanical Drawings

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

T/T, PayPal, and Western Union are acceptable.

What are the shipping methods you offer?

Our usual shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

How to place an order?

1. Confirm order details including model and quantity required.
2. Review and confirm Proforma Invoice, then arrange payment.
3. We confirm and ship goods, providing tracking number promptly.
4. We assist with tracking until safe receipt of goods.

We offer various product types. If you cannot find the specific item you need, please send us an inquiry and we will follow up shortly.
