Name: Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

Evde > Ürünler > optik alıcı modülü >

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Menşe yeri:

Guangdong, Çin

Marka adı:

Hilink

Sertifika:

CE RoHs

Model numarası:

HL-QSFP200G-LR8

Bizimle İletişim

Bir İndirim İste

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Ürün Ayrıntıları

Ürün adı:

QSFP200G-LR8

Veri Hızı:

200g

Mesafe:

10km

Garanti:

3 yıl

Sertifika:

RoHS

Teslimat süresi:

3-7 iş günü

OEM:

Destek

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Pazarlık edilebilir

Ambalaj bilgileri

Normal Paket Veya OEM

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,T/T,Western Union

İlişkili Ürünler

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

En İyi Fiyatı Alın

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

En İyi Fiyatı Alın

Video

QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 Optik Alıcı-Verici

En İyi Fiyatı Alın

QSFP56 200G Çok Modlu 850nm 200G BASE-SR4 QSFP56 Alıcı-Verici

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 10km Optical Transceiver (MPO16)

Feel free to contact us for details, compatibility, customization and wholesale pricing.

The HL-QSFP200G-LR8 is an eight-channel, pluggable, parallel, fiber-optic QSFP DD PSM8 transceiver designed for 2×100 Gigabit Ethernet and Infiniband DDR/EDR applications. This high-performance module integrates eight data lanes in each direction with 208 Gbps bandwidth, with each lane operating at 26Gbps up to 10km over G.652 single-mode fiber. The modules operate over single-mode fiber systems using a nominal wavelength of 1310nm, featuring a 76-contact edge type electrical connector and a 16-fiber MTP (MPO) optical connector.

Incorporating Hilink Technologies' proven circuit and optical technology, this transceiver provides reliable long life, high performance, and consistent service for demanding data communication and interconnect applications.

Key Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if required
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16 (APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

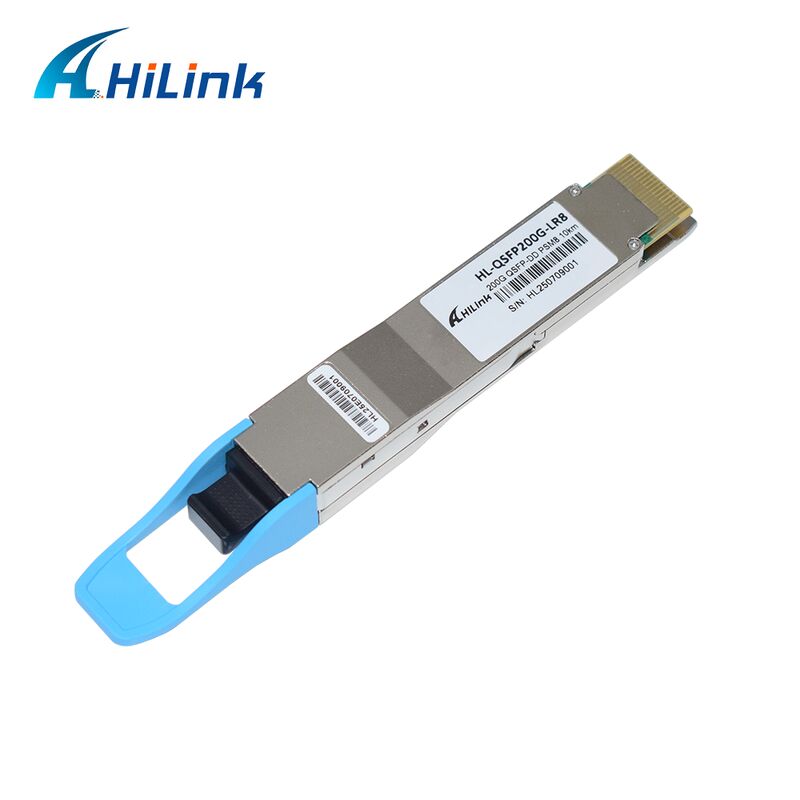

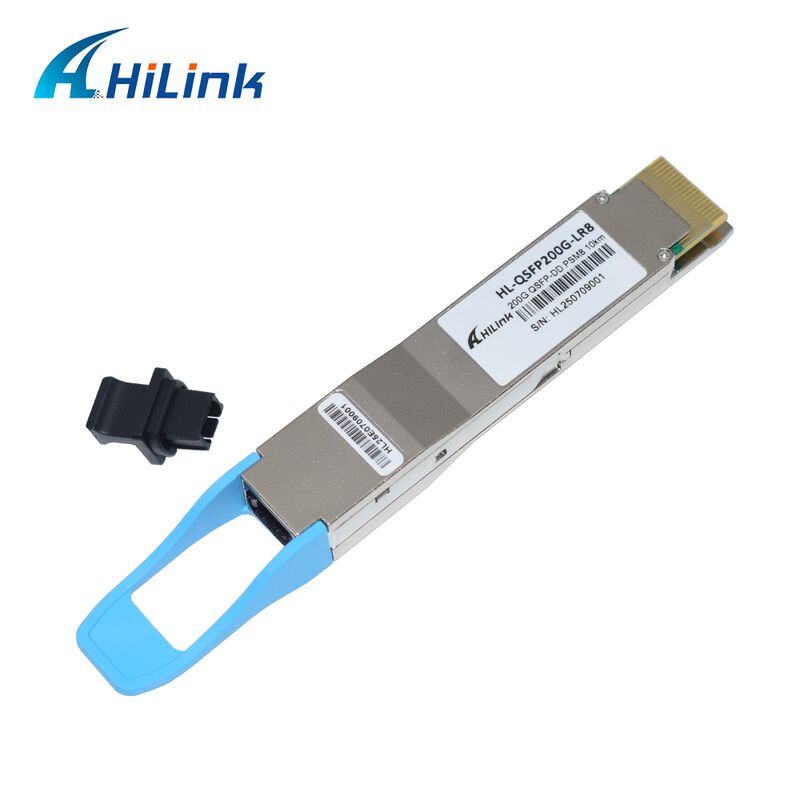

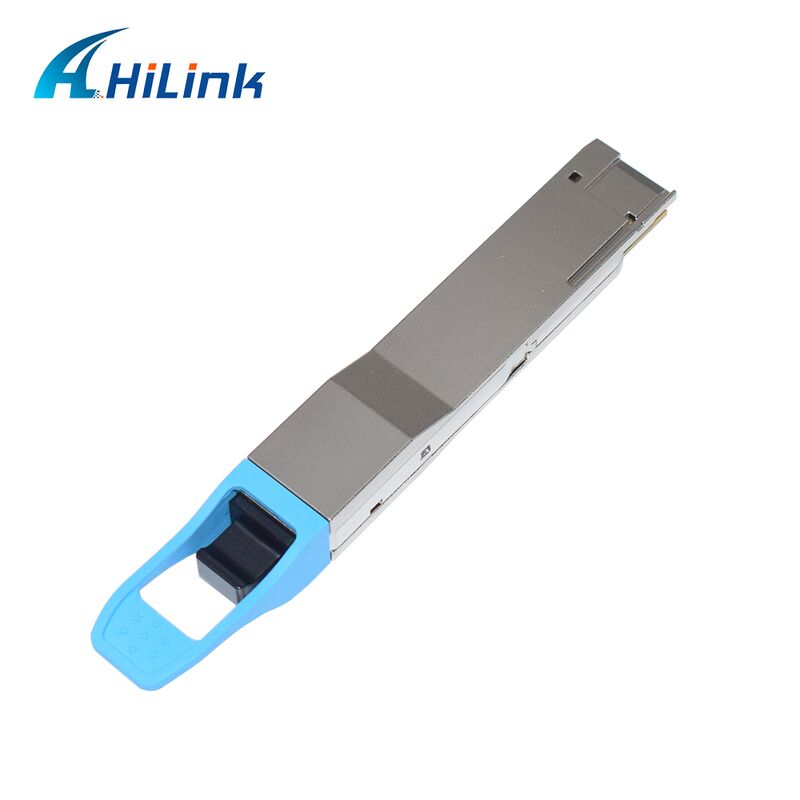

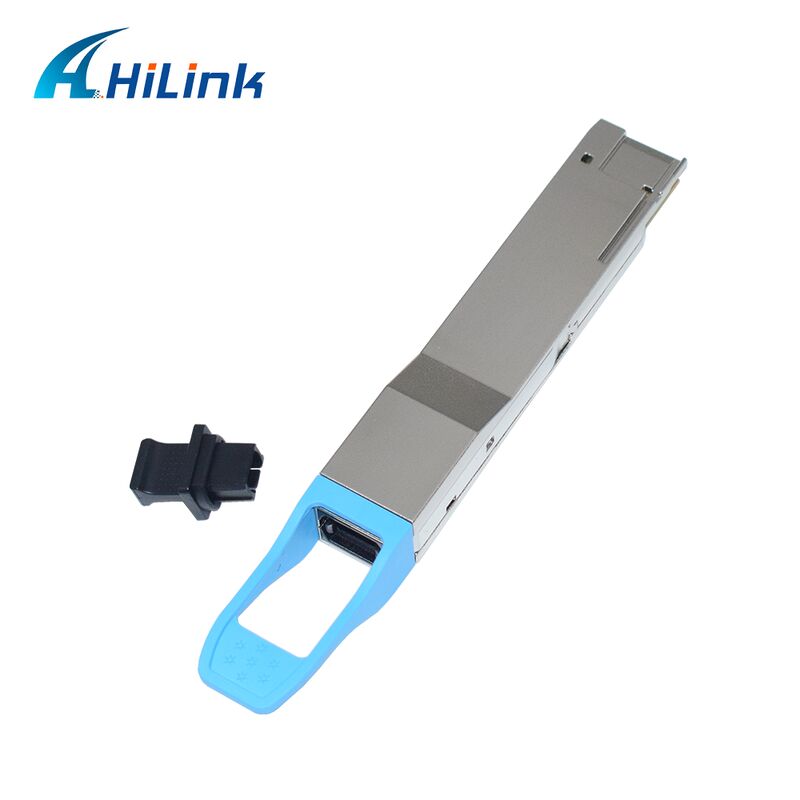

Product Images
