Name: HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-LR-10KM
Price: 130.00 USD
Availability: InStock

Evde > Ürünler > optik alıcı modülü >

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Menşe yeri:

Çin

Marka adı:

HiLink or OEM

Sertifika:

CE FCC ROSH

Model numarası:

HL-SFP28-LR-10KM

Bizimle İletişim

Bir İndirim İste

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Ürün Ayrıntıları

Veri hızı:

25Gbps

Dalgaboyu:

1310nm

Bağlayıcı Türü:

İletim Mesafesi:

10km

Güç Tüketimi:

<1,2W

Çalışma sıcaklığı:

-40°C ila +85°C

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Pazarlık edilebilir

Ambalaj bilgileri

Normal veya OEM

Teslim süresi

5-8 iş günü

Ödeme koşulları

Banka havalesi, Western Union, Paypal

Yetenek temini

haftada 2000 adet

İlişkili Ürünler

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

En İyi Fiyatı Alın

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

En İyi Fiyatı Alın

Video

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optik Alıcı DOM

En İyi Fiyatı Alın

Video

QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI Optik Alıcı EML+APD SFP Alıcı

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

HL-SFP28-LR-10KM 25G SFP28 10km Dual LC Transceivers

Product Overview

The HL-SFP28-LR-10KM Transceiver is designed for 10km reach service 25.78Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It features low power consumption, operates on a 3.3V DC power supply, and is available in industrial temperature range. Compliant with SFP28 MSA, SFF-8431 and SFF-8432 standards.

The optical assembly features low jitter and low bit error rate with a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Key Features

Operating data rate up to 25.78Gbps
Rate Adaptation
Up to 10km transmission distance
High sensitivity Pin photodiode and TIA
LC duplex connector
Hot pluggable 20pin connector
Low power consumption <1.2 W
Single +3.3V±5% power supply
Compliant with SFF-8472 & IEEE 802.3cc
Fully RoHS Compliant
Operating temperature range:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C

Applications

Data Center Backbone
Ethernet Switches
High-speed Servers
High-performance Computing Clusters
SAN, Routers, Hubs, Load Balancer

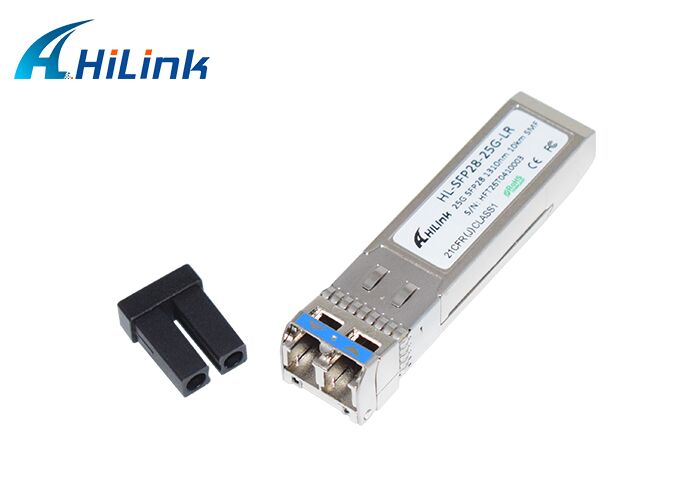

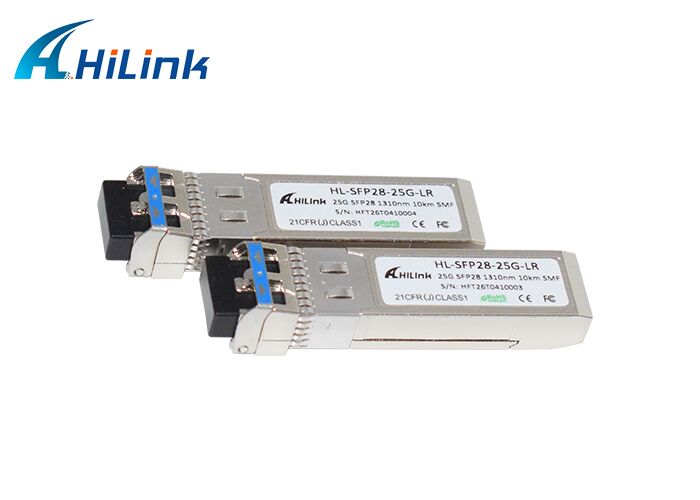

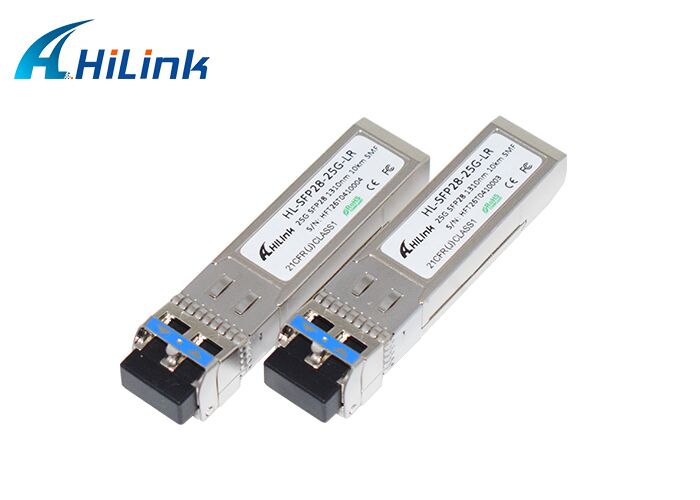

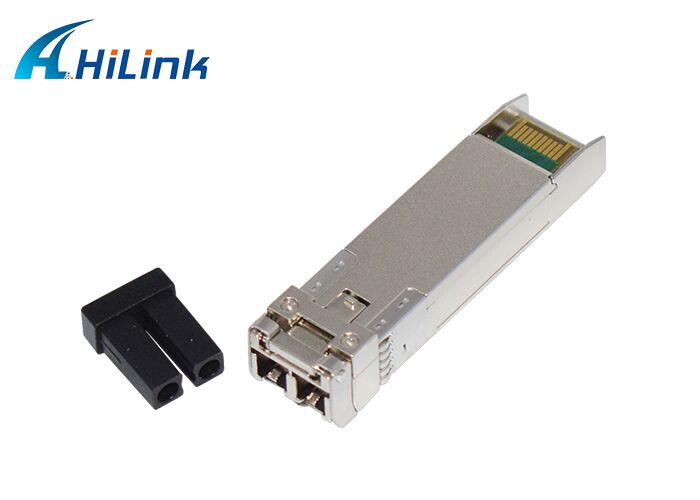

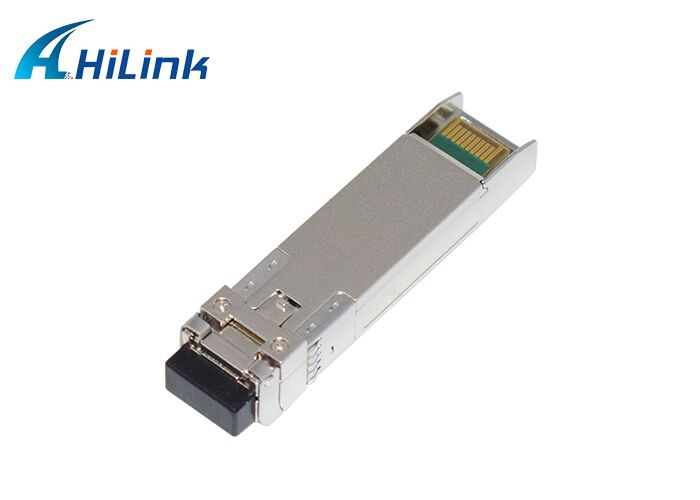

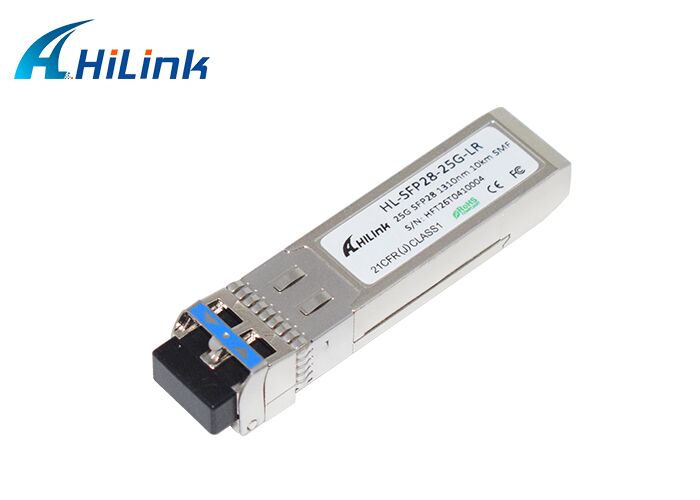

Product Images
