Name: 10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-XFP-10G-BXU/D-40
Price: 42.00 USD
Availability: InStock

Evde > Ürünler > xfp alıcı >

10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission

Menşe yeri:

Çin

Marka adı:

HILINK

Sertifika:

CE FCC Rohs

Model numarası:

HL-XFP-10G-BXU/D-40

Bizimle İletişim

Bir İndirim İste

10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission

Ürün Ayrıntıları

Ürün adı:

XFP+ 10G BIDI 40KM

Veri Hızı:

10 gr

Dalgaboyu:

1270/1330 nm

Mesafe:

40km

Bağlayıcı:

Garanti:

3 yıl

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

40~44USD

Ambalaj bilgileri

Statik torba, Plastik Düz, Perakende kutu, ihtiyaca göre

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram, Paypal

Yetenek temini

2000 pcs/ay

İlişkili Ürünler

10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission

En İyi Fiyatı Alın

Video

Tek XFP Optik Modül Alıcı Gigabit Ethernet -14dBm Alıcı Duyarlılığı

En İyi Fiyatı Alın

Video

Tek Modlu XFP Telsiz Modülü

En İyi Fiyatı Alın

Video

Uyumlu Huawei / Juniper XFP 10G LR FC Modülü Telsiz Alıcısı CATV Projesi DDM

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

10Gb/s XFP Bi-Directional Transceiver 40km Reach 1270/1330nm TX / 1330/1270 nm RX Simplex LC DDM Function RoHS Compliant

This 10Gb/s XFP Bi-Directional Transceiver offers 40km reach with 1270/1330nm TX and 1330/1270 nm RX configuration, featuring Simplex LC connector and Digital Diagnostic Monitor (DDM) function. The product is RoHS compliant and designed for reliable performance in demanding network environments.

Key Features

Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot-pluggable XFP footprint
Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
Applicable for 40km SMF connection
Low power consumption, < 2.0 W
Digital Diagnostic Monitor Interface
XFP MSA package
Operating case temperature: Commercial: 0 to 70°C, Industrial: -40 to 80°C

Product Description

This transceiver is compliant with IEEE803.3ae 10Gbase-Bx standard and supports transmission distances up to 40km on single-mode fiber. The module comprises a transmitter with a 1270 or 1330nm DFB laser transmitter, an integrated 1330 or 1270nm detector preamplifier (IDP) mounted in an optical header, and a limiting post-amplifier IC. The transmitter and receiver are designed to operate separately within wide temperature ranges (0°C to +70°C for commercial, -40°C to 80°C for industrial), offering optimal heat dissipation and excellent electromagnetic shielding for 10 GbE systems applications.

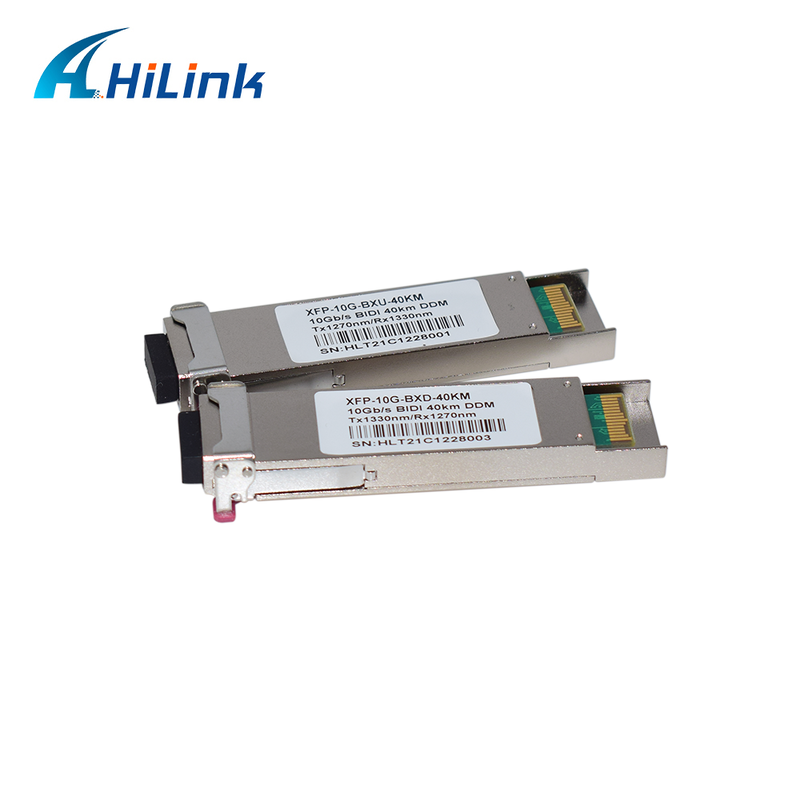

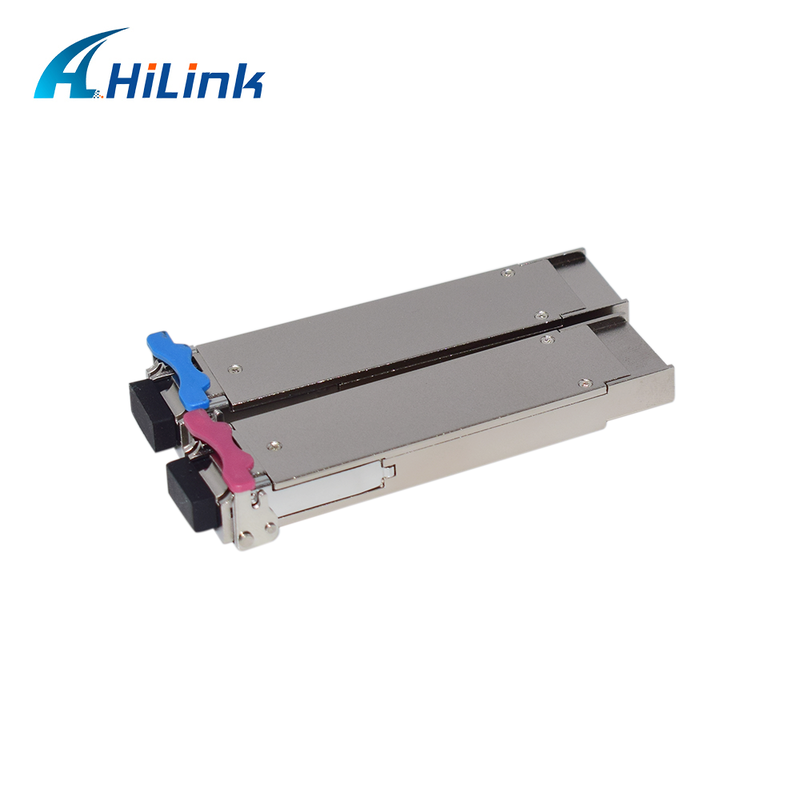

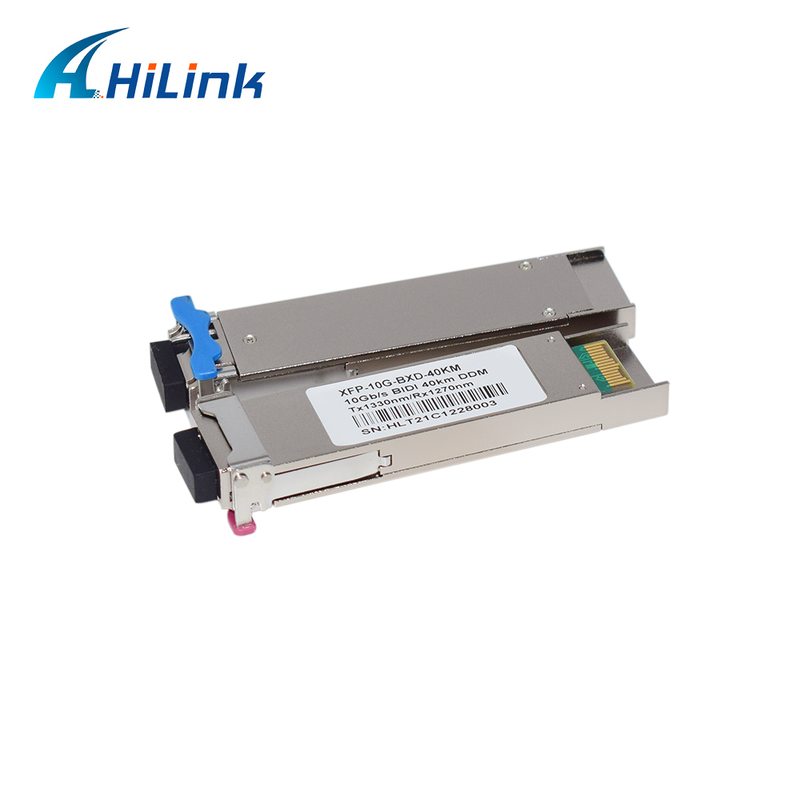

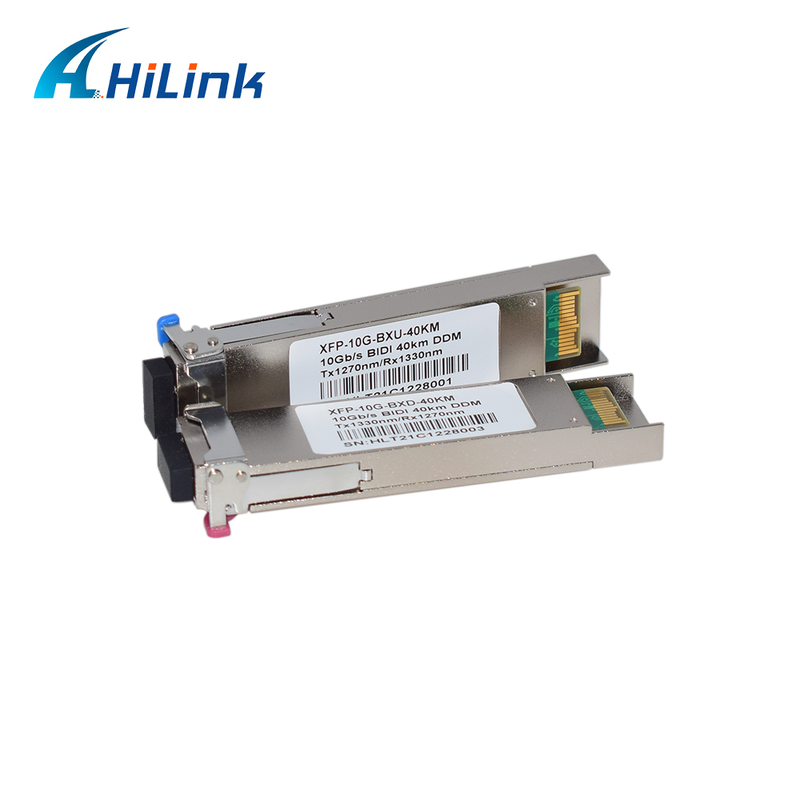

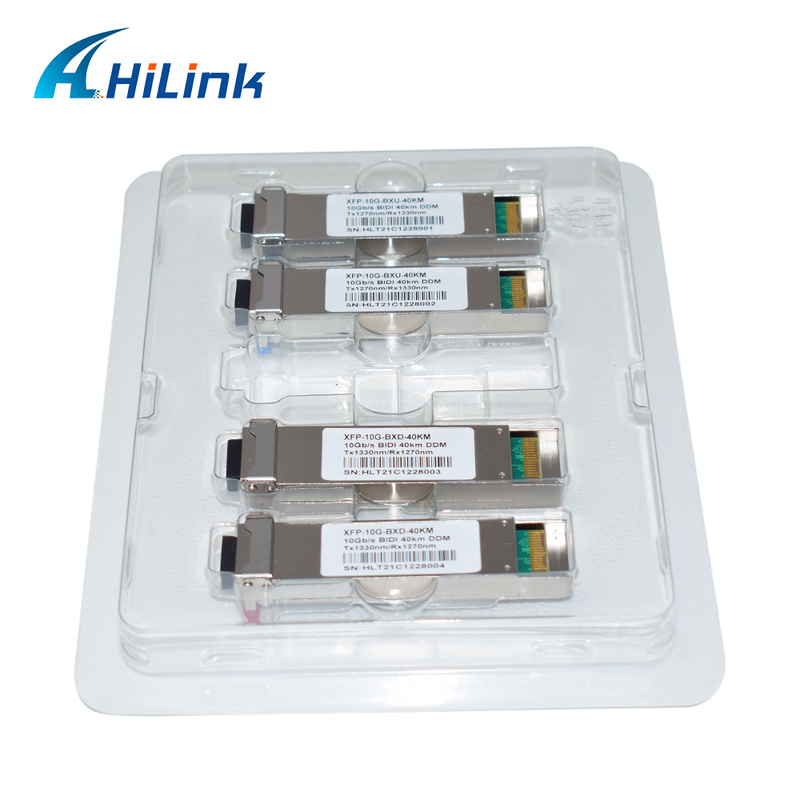

Product Images

Our Services

OEM and ODM Services

OEM/ODM orders are available to meet your specific requirements.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and parts, never using old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Range

We supply various compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei, and more.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our usual shipping methods include DHL, FedEx, TNT, UPS, EMS, etc. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, and more.

How to place an order?

1. Confirm order details - provide the model and quantity you need.

2. Confirm Proforma Invoice - we arrange your order upon receipt of payment.

3. Shipping confirmation - we ship your goods and provide tracking information.

4. Delivery support - we help track your goods until safe receipt.
